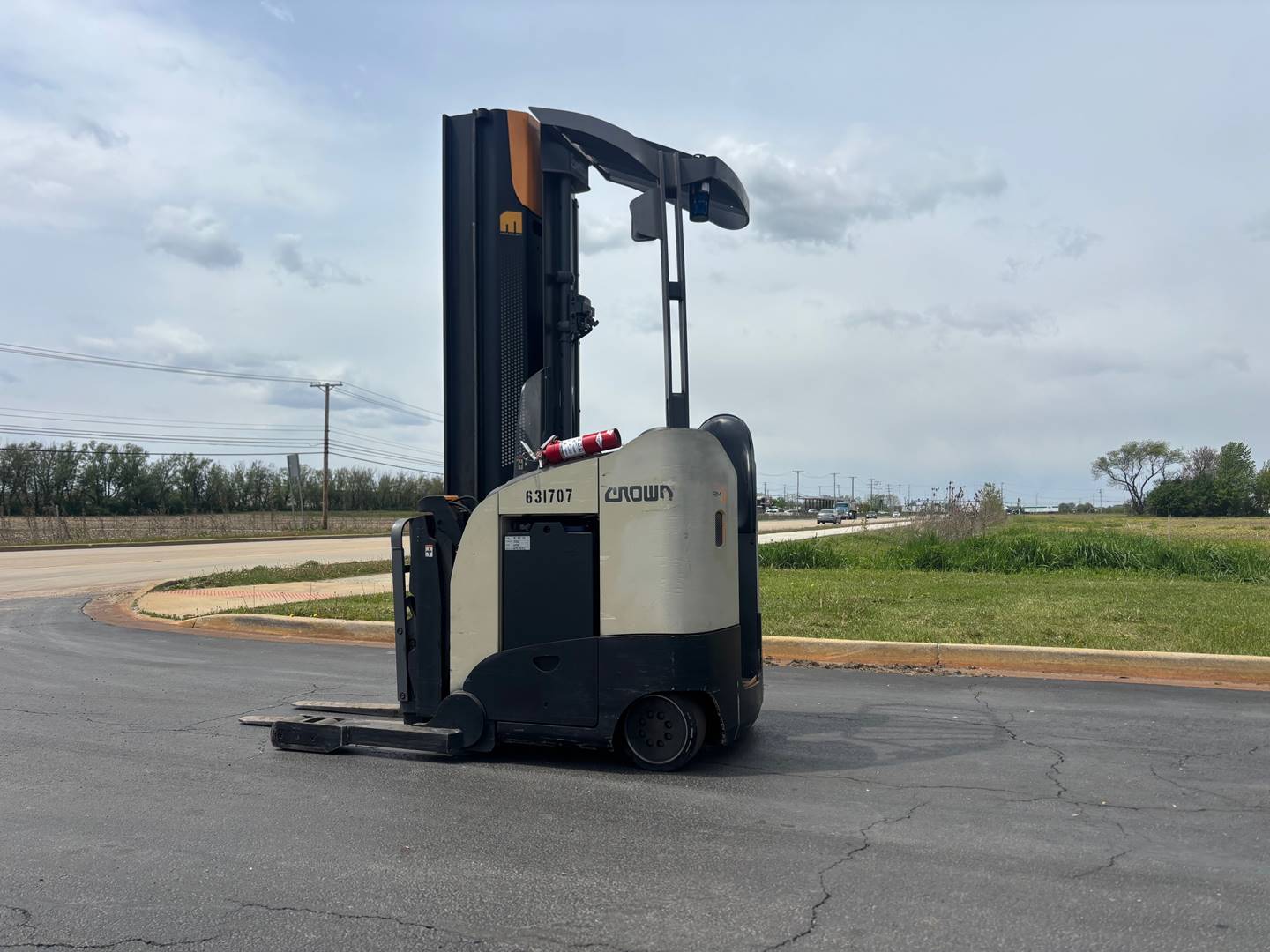

Crown RM6025-45 Electric Narrow Aisle Reach Truck | 4,500 lb Capacity
Streamline your high-density storage with the Crown RM6025-45. This powerful electric single-reach forklift is designed for precision maneuverability in narrow aisles, delivering a 4,500 lb lift capacity and industry-leading performance to maximize your warehouse throughput.
Product Information:
| Year | 2017 |
| Manufacturer | Crown |
| Model # | RM6025-45 |
| Serial # | 1A482193 |
| Subcategory | Electric Narrow Aisle Single Reach |
| Type | Forklift |
| Capacity | 4,500 lbs |
| Mast | Three Stage |
| Mast Spec | 107/240 |
| Fuel | Electric |
| Attachment | Sideshifter |
| Valves | Standard Valves & Hosing |
| Side Shifter | Yes |
| Condition | Used |
| Hours | 3,011 |
| Location | Illinois 60484 |
| Description | 3011 OP hours / 2560 Drive. 2021 Crown Battery - 95% Tested |
SPEC SHEET
- Manufacturer: Crown
- Model Number: RM6025-45
- Type: Forklift
- Subtype: Electric Narrow Aisle Single Reach
- Fuel Type: Electric / LP Gas
- Overall Length: Approx. 9 ft
- Overall Width: 3.4 ft
- Overall Height: Varies
- Wheelbase: 5.4 ft
- Ground Clearance: Approx. 0.5 ft
- Fork Length: Varies
- Load Capacity: 4,500 lbs
- Drive Speed (Loaded): ~7.5 mph
- Travel Speed: ~7.5 mph
- Lift Speed (Loaded): 60 ft/min
- Drive Motor: Electric
- Steer Type: Electric Power Steering
- Service Brake: Electric Regenerative
- Parking Brake: Automatic Electromagnetic
- Type: Cushion
- Front Tires: 12 x 5 in
- Rear Tires: 16 x 6 in
- Seating Capacity: 1
- Controls: Fingertip
- Reach Type: Single Reach
Crown RM6025-45 | Heavy-Duty Electric Narrow Aisle Single Reach Forklift
The Crown RM6025-45 is a high-performance, narrow-aisle reach truck engineered to maximize warehouse density and operator productivity. With a robust 4,500 lb lift capacity, this model is a staple in high-volume distribution centers where floor space is at a premium and vertical storage is essential. As part of Crown’s industry-leading RM series, it combines the agility of a narrow-aisle chassis with the power of an advanced electric powertrain, allowing it to navigate tight racking systems with precision and speed.
Key Features and Performance
Designed for efficiency, the RM6025-45 features an Electric Narrow Aisle Single Reach mechanism, enabling operators to deposit or retrieve pallets in aisles significantly narrower than those required by standard counterbalanced forklifts. It delivers a steady travel speed of 7.5 mph and a lift speed of 60 ft/min (loaded), ensuring that throughput remains high even during demanding shifts.
The integration of electric regenerative braking not only provides smooth, controlled stopping power but also recaptures energy to extend battery life, while the automatic electromagnetic parking brake ensures the vehicle remains secure the moment it comes to a halt.
Operator-Centric Design
The operator compartment is built for long-shift comfort and safety. It features intuitive fingertip controls that allow for simultaneous blending of hydraulic functions, reducing the physical strain on the operator. Coupled with electric power steering, the RM6025-45 offers effortless maneuverability, allowing for sharp, confident turns in confined spaces.
Durability and Reliability
Equipped with heavy-duty cushion tires (12 x 5 inch front and 16 x 6 inch rear), this forklift is optimized for smooth indoor warehouse floors, providing excellent stability at high lift heights. Its 5.4 ft wheelbase offers a grounded, sturdy feel, while the 0.5 ft ground clearance ensures a low center of gravity. Whether you are managing a cold storage facility or a standard dry warehouse, the Crown RM6025-45 provides the reliability and precision required for modern material handling.
