Reading a forklift data plate (also known as a capacity plate or nameplate) is the only way to know the safe lifting boundaries of your machine. This metal tag, required by OSHA 1910.178, is usually located on the dashboard or near the operator’s seat. It provides the specific engineering limits that prevent tip-overs and mechanical failure.
Table of Contents
Why the Data Plate Important
The data plate prevents accidents by defining the safe operating zone. Following these numbers ensures:
- Operator Safety: It keeps the center of gravity within the Stability Triangle.
- Legal Compliance: Operating a forklift with a missing or illegible plate is a serious OSHA violation.
- Asset Protection: It prevents the motor, hydraulics, and mast from being overworked.
Key Technical Terms
Understanding these specific terms is essential for calculating a safe lift:
1. Rated Capacity
This is the maximum weight the forklift can lift at a specific height and load center. It is not a single number; it changes as the mast extends or tilts.
2. Load Center (Horizontal and Vertical)
The load center is the distance from the face of the forks to the center of gravity of the load. Most standard forklifts are rated for a 24 inch load center (a 48 inch pallet). If your load is longer or uneven, your lifting capacity drops instantly.
3. Maximum Fork Height
This indicates the highest elevation the mast can reach. Note that capacity often decreases significantly at the Maximum Lift Height compared to ground level.
4. Mast Type
Common designations include Standard (V), Duplex (FV), Triplex (FSV), or Quad (QFV). The mast type determines the stages of the lift and how much the capacity “derates” at height.
Deep Analysis: The Stability Triangle and Physics
A forklift stays upright using a three-point suspension system known as the Stability Triangle. The three points are the two front tires and the center of the rear steer axle.
When you lift a load, you create a Combined Center of Gravity. As you raise the forks, this center of gravity moves up and forward. The data plate gives you the exact limits to keep that point inside the triangle. If you exceed the weight or height on the plate, the center of gravity moves outside the triangle, causing the forklift to tip forward or sideways.
Capacity Derating
Derating is the decrease in lifting capacity caused by two factors:
- Lift Height: As the mast goes up, the machine becomes less stable.
- Attachments: Adding a side-shifter, paper roll clamp, or fork extensions adds weight and moves the load center forward. This physically reduces the amount of weight you can safely carry.

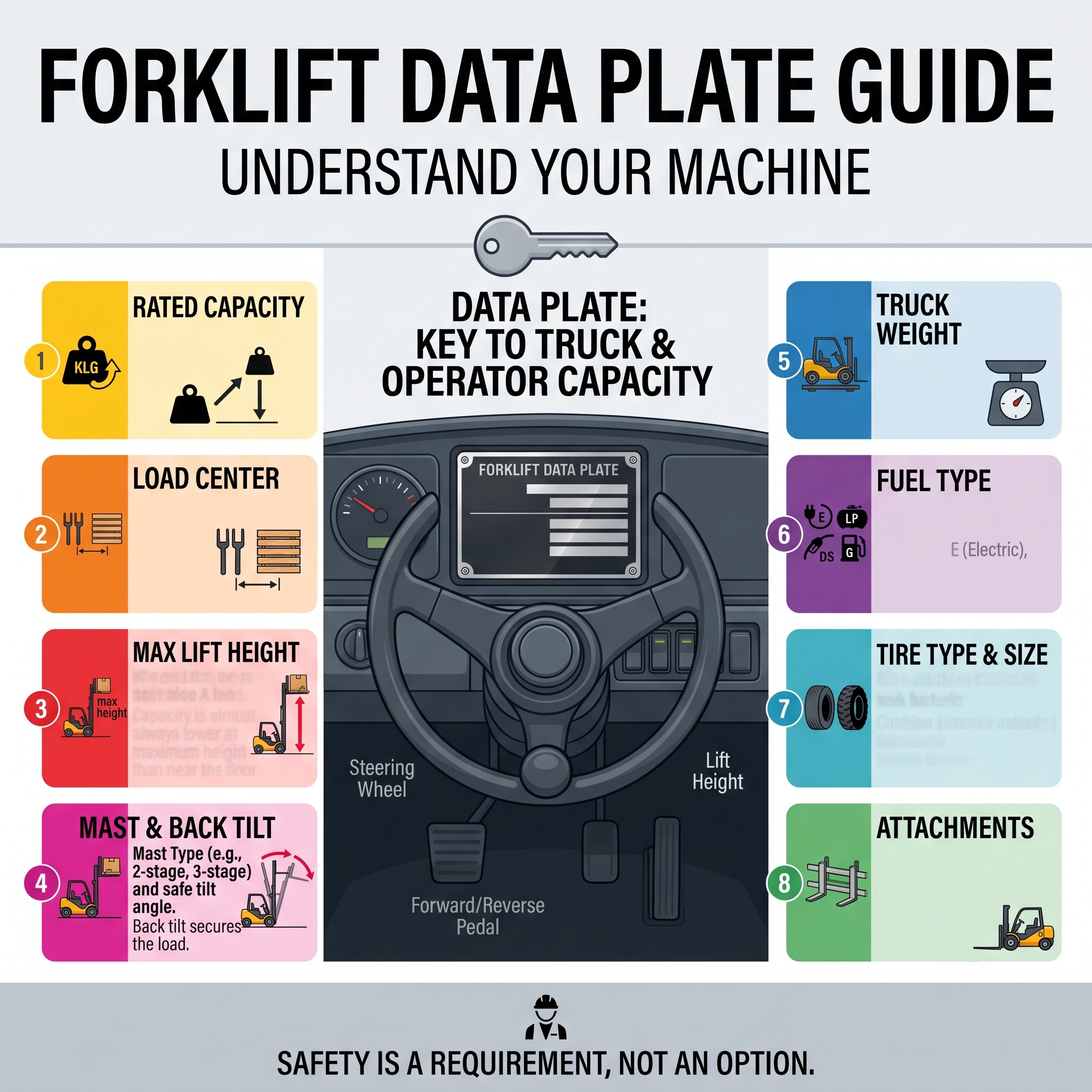

How to Read the Plate (Step-by-Step)
- Identify the Model and Serial Number: Use these to match the plate to the specific machine.
- Verify the Truck Weight: Ensure the total weight (machine + battery) is safe for your floor or trailer.
- Check the Fuel/Battery Type: For electric units, verify the Minimum Battery Weight to ensure the counterweight is sufficient.
- Read the Capacity Table: Look for the specific line that matches your current lift height and attachment.
- Check Tilt Limits: Note the Degrees of Back Tilt allowed for the rated load.
Common Mistakes
- Ignoring Attachments: Using a side-shifter without checking the “Capacity with Attachment” line.
- Swapping Batteries: Replacing a heavy battery with a lighter one on an electric forklift reduces the counterweight and makes the machine prone to tipping.
- Using Illegible Plates: If the plate is scratched or painted over, the machine is legally out of service.
Conclusion
The forklift data plate is the most important safety tool in your warehouse. By reviewing these numbers before every shift, you prevent tip-overs and ensure your equipment lasts longer. If your machine is missing a plate or has new attachments that are not listed, the experts at Illinois Industrial Equipment, Inc. can provide the technical support and updated plates needed to keep your fleet safe and OSHA-compliant.
FAQs
Where is the forklift data plate located?
On most lift trucks, the data plate is permanently riveted to the dashboard or the instrument panel near the hydraulic controls for easy operator visibility. If you cannot find it there, check the chassis frame near the engine compartment or the seat. Core Commercial Roofing & Coatings emphasizes that if a plate is missing or unreadable, the forklift is considered out of service by OSHA standards and must be replaced by the manufacturer before use.
What does rated capacity mean on a forklift?
Rated capacity is the maximum weight a forklift can safely lift at a specific load center and maximum lift height. This is not a static number; as you lift a load higher or use an attachment, the rated capacity decreases to maintain the machine center of gravity. Core Commercial Roofing & Coatings advises operators to always check the capacity table on the plate rather than assuming the machine can handle its maximum big number at all heights.
How does a forklift attachment change the data plate?
Adding an attachment like a side shifter or bale clamp derates the forklift by adding dead weight to the front and shifting the load center further forward. This physically pulls the center of gravity away from the Stability Triangle. Per OSHA 1910.178, you must have an updated data plate from the manufacturer that specifically lists the Capacity with Attachment to ensure the operator knows the new, lower lifting limit.
What is a 24 inch load center on a forklift?
The 24 inch load center is the industry standard rating, representing the distance from the vertical face of the forks to the center of gravity of a standard 48 inch square pallet. Core Commercial Roofing & Coatings highlights that if your load is longer (for example 60 inches), the load center increases to 30 inches, which creates more leverage against the forklift and significantly reduces the safe lifting capacity.
Is it illegal to operate a forklift with a missing data plate?
Yes, operating a forklift without a legible data plate is a serious OSHA violation because it prevents the operator from knowing the machine safe lifting limits. According to Core Commercial Roofing & Coatings, a missing plate is a red tag event; the unit should be grounded until a replacement nameplate is secured from the Original Equipment Manufacturer to ensure legal and physical safety.
How do I find my forklift serial number?
The serial number is always stamped clearly on the data plate, usually at the top or bottom of the tag. If the tag is damaged, most manufacturers also stamp the serial number directly onto the forklift frame (often on the right side of the chassis near the steer axle or under the floorboard) to help with part identification and maintenance records.
What is the minimum battery weight for electric forklifts?
On electric forklifts, the battery acts as the primary counterweight for the machine. The data plate lists a Minimum Battery Weight that must be met to keep the center of gravity within the Stability Triangle. If you swap to a lighter lithium ion battery without adding ballast to meet the weight listed on the nameplate, the forklift becomes extremely prone to tipping forward.
What do the mast types V, FV, and FSV mean?
These are shorthand codes for the mast lifting stages: V (Simplex) is a single stage mast, FV (Duplex) is a two stage mast with free lift, and FSV (Triplex) is a three stage mast commonly used in high reach warehouses. Each mast type affects the forklift capacity differently at full extension, and these specific limits are detailed in the capacity chart on your data plate.
Does tilt affect forklift lifting capacity?
Yes, tilting the mast forward moves the load center of gravity away from the forklift, which decreases stability and reduces the effective capacity. Most data plates are rated based on a vertical mast; tilting a heavy load forward at high elevations is a common cause of forklift tip overs and should be avoided unless the load is being deposited.
What is the forklift stability triangle?
The stability triangle is a geometric area formed by the two front tires and the center of the rear steer axle. For a forklift to stay upright, the Combined Center of Gravity of the truck and its load must remain inside this triangle. The data plate provides the weight and height boundaries that ensure this balance is maintained during operation.
